> For the complete documentation index, see [llms.txt](https://yams.yassrobotics.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://yams.yassrobotics.com/documentation/explanation/how-do-i-view-my-datalog-in-advantagescope.md). # How do I view my DataLog in AdvantageScope? {% hint style="danger" %} **This is not "Log Replay."** [AdvantageKit's Log Replay](https://docs.advantagekit.org/getting-started/what-is-advantagekit) re-runs your robot code against a recorded log to deterministically reproduce a match in simulation, it requires the AdvantageKit IO-interface pattern described in [AdvantageKit Integration](/documentation/understanding/advantagekit-integration.md). What this page covers is simpler and works with **every** YAMS project, AdvantageKit or not: opening the `.wpilog` file your robot already wrote and looking at the recorded values in AdvantageScope. Nothing re-executes, you're just viewing a file. {% endhint %} Every YAMS telemetry field can be routed to a WPILib `DataLog` in addition to (or instead of) NetworkTables, see [Telemetry](/documentation/understanding/telemetry.md) and [DataLog Best Practices](/documentation/understanding/datalog-best-practices.md) for the full API. This page is the practical walkthrough, recorded end-to-end on the [Swerve Drive tutorial](/documentation/tutorials/swerve-drive.md)'s example subsystem: configuring it to log, running it, and opening the resulting file in [AdvantageScope](https://docs.advantagekit.org/tools/advantagescope/). ## Make sure a DataLog is actually being written `DataLogManager` owns the actual file on disk; YAMS just writes into it. Start it once, early, in `Robot.java`: ```java @Override public void robotInit() { DataLogManager.start(); DriverStation.startDataLog(DataLogManager.getLog()); // optional: also logs joystick/DS data } ``` {% hint style="info" %} If you never call `DataLogManager.start()` yourself, YAMS still starts it lazily the first time a field with a DataLog name is published, but calling it explicitly in `robotInit()` guarantees the log begins at power-on (not at the first telemetry update) and lets you fold in DS/joystick data with `DriverStation.startDataLog(...)`. {% endhint %} On the real robot, `.wpilog` files are written to a USB drive if one is plugged in, otherwise to `/home/lvuser/logs` on the roboRIO's internal storage. In simulation, they land in your project's `logs/` folder next to `build.gradle`. WPILib initially names the file `FRC_TBD_.wpilog` and renames it to a timestamp (e.g. `FRC_20260817_010558.wpilog`) once it has a real time source, you'll see a `DataLog: Renamed log file from '...' to '...'` line in the console when that happens. ## Configure the SwerveDrive to log This walkthrough builds on the `SwerveSubsystem` from the [Swerve Drive tutorial](/documentation/tutorials/swerve-drive.md), with `withDataLogName(...)` added at three levels: the drive, each module, and (for field-level control) the azimuth motor inside each module.

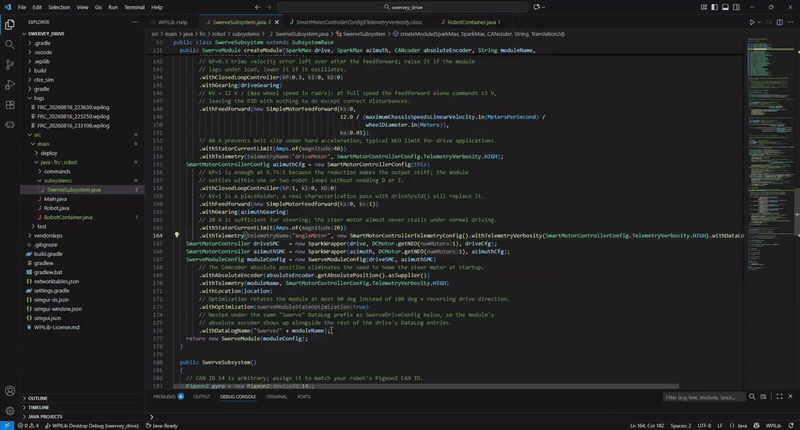

Walking through SwerveSubsystem's createModule() and constructor, showing where each withDataLogName(...) call goes.

`createModule()` builds one module's drive/azimuth motors and the `SwerveModuleConfig`, and the constructor wires the drive-level DataLog name: {% tabs %} {% tab title="Java" %} ```java public SwerveModule createModule(SparkMax drive, SparkMax azimuth, CANcoder absoluteEncoder, String moduleName, Translation2d location) { MechanismGearing driveGearing = new MechanismGearing(12.75); MechanismGearing azimuthGearing = new MechanismGearing(6.75); Distance wheelDiameter = Inches.of(4); SmartMotorControllerConfig driveCfg = new SmartMotorControllerConfig(this) .withWheelDiameter(wheelDiameter) .withClosedLoopController(0.3, 0, 0) .withGearing(driveGearing) .withFeedforward(new SimpleMotorFeedforward(0, 12.0 / (maximumChassisSpeedsLinearVelocity.in(MetersPerSecond) / wheelDiameter.in(Meters)), 0.01)) .withStatorCurrentLimit(Amps.of(40)) .withTelemetry("driveMotor", SmartMotorControllerConfig.TelemetryVerbosity.HIGH); SmartMotorControllerConfig azimuthCfg = new SmartMotorControllerConfig(this) .withClosedLoopController(1, 0, 0) .withFeedforward(new SimpleMotorFeedforward(0, 1)) .withGearing(azimuthGearing) .withStatorCurrentLimit(Amps.of(20)) // Granular per-field config (see "Granular control" below), chosen fields + its own DataLog name, // instead of the name+verbosity shorthand used for the drive motor above. .withTelemetry("angleMotor", new SmartMotorControllerTelemetryConfig() .withTelemetryVerbosity(SmartMotorControllerConfig.TelemetryVerbosity.HIGH) .withDataLogName(moduleName)); SmartMotorController driveSMC = new SparkWrapper(drive, DCMotor.getNEO(1), driveCfg); SmartMotorController azimuthSMC = new SparkWrapper(azimuth, DCMotor.getNEO(1), azimuthCfg); SwerveModuleConfig moduleConfig = new SwerveModuleConfig(driveSMC, azimuthSMC) .withAbsoluteEncoder(absoluteEncoder.getAbsolutePosition().asSupplier()) // Nested under the same "Swerve" DataLog prefix as SwerveDriveConfig below, so the module's // absolute encoder shows up alongside the rest of the drive's DataLog entries. .withTelemetry(moduleName, new SwerveModuleTelemetryConfig(SmartMotorControllerConfig.TelemetryVerbosity.HIGH) .withDataLogName("Swerve/" + moduleName)) .withLocation(location) .withOptimization(true); return new SwerveModule(moduleConfig); } ``` ```java SwerveDriveConfig config = new SwerveDriveConfig(this, fl, fr, bl, br) .withGyro(gyro.getYaw().asSupplier()) .withStartingPose(new Pose2d(0, 0, Rotation2d.fromDegrees(0))) .withTranslationController(new PIDController(1, 0, 0)) .withRotationController(new PIDController(1, 0, 0)) .withTelemetry("swerve", new SwerveDriveTelemetryConfig(SmartMotorControllerConfig.TelemetryVerbosity.HIGH) // Logs pose/gyro/chassis speeds/module states to a WPILib DataLog (readable with AdvantageScope // or DataLogTool) in addition to NetworkTables. Each module above nests under "Swerve/". .withDataLogName("Swerve")); drive = new SwerveDrive(config); ``` {% endtab %} {% tab title="C++" %} The same shape applies with `WithDataLogName`, based on the [C++ swerve example](https://github.com/Yet-Another-Software-Suite/YAMS/blob/master/examples/cpptest/src/main/cpp/subsystems/SwerveSubsystem.cpp): ```cpp m_driveConfig.WithSubsystem(this) .WithModules({&m_fl.value(), &m_fr.value(), &m_bl.value(), &m_br.value()}) .WithGyro([gyroPtr = &m_gyro]() -> units::degree_t { return units::degree_t{units::turn_t{gyroPtr->GetYaw().GetValue()}}; }) .WithTelemetry("swerve", yams::telemetry::SwerveDriveTelemetryConfig(SwerveDriveConfig::TelemetryVerbosity::HIGH) .WithDataLogName("Swerve")); moduleCfgMember .WithAbsoluteEncoder(/* ... */) .WithTelemetry(moduleName, yams::telemetry::SwerveModuleTelemetryConfig(Cfg::TelemetryVerbosity::HIGH) .WithDataLogName("Swerve/" + moduleName)) .WithLocation(location) .WithOptimization(true); ``` Neither `SwerveDriveConfig::WithTelemetry(...)` nor `SwerveModuleConfig::WithTelemetry(...)` has a name-less overload, the telemetry name is always the first argument. See the C++ API reference's `SwerveDriveConfig` and `SwerveModuleConfig` pages for the full builder reference. {% endtab %} {% endtabs %} {% hint style="warning" %} The drive's `SwerveDriveTelemetryConfig.withDataLogName(...)` and a module's `SwerveModuleTelemetryConfig.withDataLogName(...)` are independent calls, setting one does not cascade to the other, and neither cascades to the drive/azimuth motors. That's why `createModule()` above sets a third, separate DataLog name directly on the azimuth motor's own `SmartMotorControllerTelemetryConfig`. Neither `SwerveDriveConfig` nor `SwerveModuleConfig` has a `withDataLogName(...)` of its own, DataLog naming only lives on the `*TelemetryConfig` classes. {% endhint %} ### Granular control: which fields, and where they go The drive and azimuth motors underneath each module are ordinary `SmartMotorController`s, so, as shown on `azimuthCfg` above, you get the same field-level control you'd get on any standalone mechanism's motor by building a `SmartMotorControllerTelemetryConfig` and handing it to `withTelemetry(name, ...)` instead of the `withTelemetry(name, verbosity)` shorthand. The drive-level and per-module fields (pose, gyro, chassis speeds, module states, absolute encoder) work the same way, but through their own config classes, `SwerveDriveTelemetryConfig` and `SwerveModuleTelemetryConfig`, passed to `withTelemetry(name, ...)` instead of a bare `TelemetryVerbosity`. Both also have a `TelemetryVerbosity`-taking constructor (`new SwerveDriveTelemetryConfig(TelemetryVerbosity.HIGH)`) as shorthand for `new SwerveDriveTelemetryConfig().withTelemetryVerbosity(TelemetryVerbosity.HIGH)`. `SmartMotorControllerTelemetryConfig`, `SwerveDriveTelemetryConfig`, and `SwerveModuleTelemetryConfig` all control both axes independently: * **Which fields**, every field is disabled by default. `withTelemetryVerbosity(LOW/MID/HIGH)` turns on a cumulative preset; individual `with*()` methods (`withStatorCurrent()`, `withTemperature()`, `withMechanismPosition()`, ...) add or supplement it. See the full field list on the `SmartMotorControllerTelemetryConfig` API reference page. * **Where they go**, `withDataLogName(name)` turns on DataLog for every enabled field under that prefix. `withoutNetworkTables()` (or `withNetworkTables(false)`) stops those same fields from reaching NT4. The two are independent: log-only, NT-only, both, or neither are all valid combinations. A common competition pattern is to keep NT4 for practice/pit testing and drop it once you're on the field, while DataLog keeps recording either way: ```java .withTelemetry("angleMotor", new SmartMotorControllerTelemetryConfig() .withTelemetryVerbosity(SmartMotorControllerConfig.TelemetryVerbosity.HIGH) .withDataLogName(moduleName) .withNetworkTables(!DriverStation.isFMSAttached())); ``` {% hint style="info" %} Want the deeper rationale for choosing LOW vs. MID vs. HIGH, and why to prune before a competition rather than after? See [DataLog Best Practices](/documentation/understanding/datalog-best-practices.md). {% endhint %} ## Run it and record Deploy or simulate the robot, enable it, and drive around for a bit, every enabled loop writes to both NetworkTables and the DataLog for every field configured above.

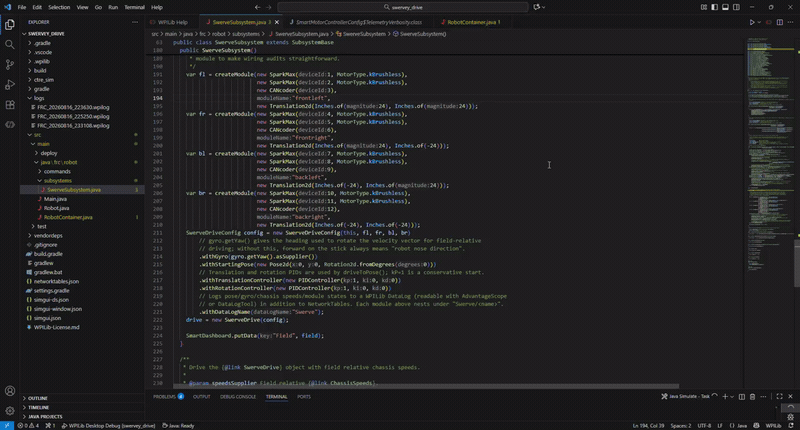

Running the swerve example in WPILib simulation and driving it around in Teleoperated to generate telemetry.

## Pull the file and open it in AdvantageScope 1. Grab the `.wpilog` off the RIO (USB drive, or `scp lvuser@10.TE.AM.2:/home/lvuser/logs/*.wpilog .`), or straight from your sim project's `logs/` folder. 2. Open **AdvantageScope**, then **File → Open File...** (or drag the `.wpilog` onto the window). Do **not** use "Connect to Robot/Simulator", that connects live over NetworkTables, which shows *current* values, not the recorded run.

Opening the recorded .wpilog via AdvantageScope's file picker, note the other logs from earlier runs sitting alongside it in the same logs/ folder.

3. AdvantageScope reads every logged entry into a field tree in the sidebar, grouped by the DataLog name prefixes you set when configuring the SwerveDrive, with the `"Swerve"` prefix from this example, that's a single `Swerve` group containing `chassis/current`, `chassis/desired`, `pose`, `gyro`, and a `frontleft`/`frontright`/`backleft`/`backright` entry per module (plus that module's `angleMotor` DataLog entries from the granular control config). ## Explore the data Add a tab to visualize the data: * **Swerve** tab, AdvantageScope's built-in module visualizer. Drag a `SwerveModuleState[]` field (e.g. `Swerve/states/current`) into the **Sources** list at the bottom to see wheel vectors animate over the timeline. * **2D Field** tab, drag `Swerve/pose` in to see the robot's recorded path. * **Line Graph** tab, drag any numeric field (gyro angle, a motor's stator current, mechanism position) to plot it over time, and use **right-click → Convert Units...** to change the displayed unit without touching robot code (see [Telemetry](/documentation/understanding/telemetry.md#using-advantagescope-for-unit-conversion)).

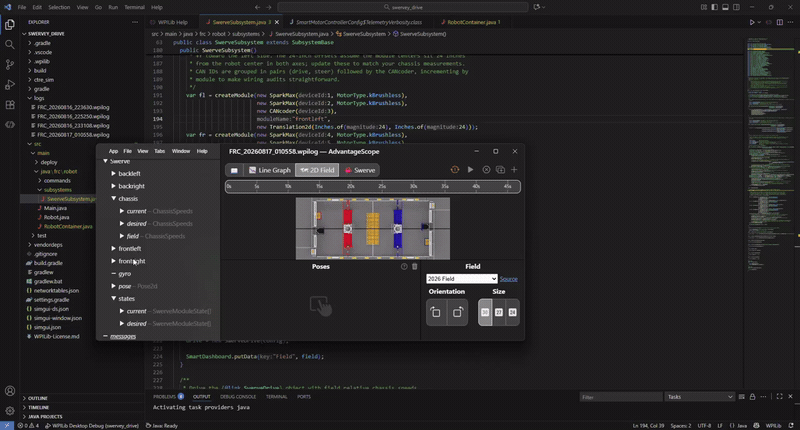

Expanding the field tree and dragging Swerve/states/current into the Swerve tab's Sources to visualize the recorded module states, the wheel angles/speeds shown here match exactly what the modules reported during the run.

Scrub the timeline at the top of the window to step through the run, or hit play to watch it back at normal speed. {% hint style="success" %} Because this is just a file, you can open the same `.wpilog` in as many tabs/windows as you want, compare two different matches side by side, or hand the file to a teammate to look at independently, none of that requires the robot, the simulator, or AdvantageKit replay to be running. {% endhint %} ## Related pages * [Telemetry](/documentation/understanding/telemetry.md) * [DataLog Best Practices](/documentation/understanding/datalog-best-practices.md) * [Swerve Drive](/documentation/tutorials/swerve-drive.md) * [AdvantageKit Integration](/documentation/understanding/advantagekit-integration.md), for the separate, unrelated concept of deterministic Log Replay
