> For the complete documentation index, see [llms.txt](https://yams.yassrobotics.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://yams.yassrobotics.com/documentation/understanding/swerve-drive.md). # Swerve Drive ## Why `SwerveDrive` is different from other mechanisms Every other mechanism in YAMS (`Arm`, `Elevator`, `Pivot`, `FlyWheel`) wraps a single `SmartMotorController`. `SwerveDrive` is a mechanism made of mechanisms: it owns an array of `SwerveModule`s, and each `SwerveModule` owns two `SmartMotorController`s of its own (drive and azimuth). `SwerveDriveConfig` is where the two levels meet: you build each `SwerveModule` (and its own `SwerveModuleConfig`) first, then hand the finished modules to `SwerveDriveConfig`, which derives the robot's kinematics automatically from where you told each module it physically sits. ## Basic Swerve Config Given the [tutorial](/documentation/tutorials/swerve-drive.md), here is the shape of a four-module config. Modules are ordered clockwise from front-left: FL, FR, BL, BR. ```java SmartMotorControllerConfig driveCfg = new SmartMotorControllerConfig(this) .withWheelDiameter(Inches.of(4)) .withGearing(new MechanismGearing(6.75)) .withClosedLoopController(0.3, 0, 0) .withFeedforward(new SimpleMotorFeedforward(0, 1.9, 0.01)) .withStatorCurrentLimit(Amps.of(40)) .withTelemetry("driveMotor", TelemetryVerbosity.HIGH); SmartMotorControllerConfig azimuthCfg = new SmartMotorControllerConfig(this) .withGearing(new MechanismGearing(12.8)) .withClosedLoopController(1.0, 0, 0) .withFeedforward(new SimpleMotorFeedforward(0, 1)) .withStatorCurrentLimit(Amps.of(20)) .withTelemetry("angleMotor", TelemetryVerbosity.HIGH); SmartMotorController driveSMC = new SparkWrapper(driveMotor, DCMotor.getNEO(1), driveCfg); SmartMotorController azimuthSMC = new SparkWrapper(azimuthMotor, DCMotor.getNEO(1), azimuthCfg); SwerveModuleConfig moduleConfig = new SwerveModuleConfig(driveSMC, azimuthSMC) .withAbsoluteEncoder(encoder.getAbsolutePosition().asSupplier()) .withLocation(Meters.of(0.3), Meters.of(0.3)) // front, left, from robot center .withOptimization(true) .withTelemetry("frontleft", TelemetryVerbosity.HIGH); SwerveModule fl = new SwerveModule(moduleConfig); // ...repeat for fr, bl, br with their own locations... SwerveDriveConfig config = new SwerveDriveConfig(this, fl, fr, bl, br) .withGyro(gyro.getYaw().asSupplier()) .withMaximumChassisSpeed(MetersPerSecond.of(4.5), DegreesPerSecond.of(360)) .withTranslationController(new PIDController(1.0, 0, 0)) .withRotationController(new PIDController(1.0, 0, 0)) .withStartingPose(new Pose2d()); SwerveDrive drive = new SwerveDrive(config); ``` ## Module Location Drives the Kinematics `SwerveModuleConfig.withLocation(front, left)` (or `withDistanceFromCenterOfRotation`) is not just bookkeeping. `SwerveDrive` builds its `SwerveDriveKinematics` directly from the locations of every module you pass it, so the drive/rotate math is always correct for your specific chassis dimensions without you ever constructing a `SwerveDriveKinematics` yourself. ```java SwerveModuleConfig moduleConfig = new SwerveModuleConfig(driveSMC, azimuthSMC) .withLocation(Meters.of(0.3), Meters.of(0.3)); // X = forward, Y = left, from robot center ``` `withDistanceFromCenterOfRotation` is an equivalent alternate form: ```java moduleConfig.withDistanceFromCenterOfRotation(Meters.of(0.3), Meters.of(0.3)); ``` {% hint style="warning" %} Every module needs its location set before it's handed to `SwerveDriveConfig`. A missing or wrong location silently produces incorrect kinematics rather than a compile error, so double check trackwidth/wheelbase math when a robot doesn't drive straight. {% endhint %} The `withOptimization(true)` seen in the config above is a per-module flag, not a drive-level one. See [Optimization and Cosine Compensation](/documentation/understanding/swerve-drive/swerve-module.md#optimization-and-cosine-compensation) on the Swerve Module page for what it (and its counterpart `withCosineCompensation`) actually does. ## Gyro Integration and Field vs. Robot Relative Speeds `SwerveDriveConfig.withGyro(Supplier)` is what lets `SwerveDrive` convert between field-relative and robot-relative `ChassisSpeeds`. Internally, `SwerveDrive` always drives the modules with robot-relative speeds; `setFieldRelativeChassisSpeeds` just rotates the requested speeds into the robot frame using the current gyro angle before handing them to the same code path robot-relative callers use. ```java drive.setFieldRelativeChassisSpeeds(new ChassisSpeeds(1.0, 0, 0)); ``` `SwerveDriveConfig.withGyroOffset` and `withGyroInverted` exist so the gyro's raw zero and sign can be corrected without touching your drive code: ```java config.withGyroOffset(Degrees.of(90)) .withGyroInverted(true); ``` `withGyroVelocity`/`withGyroAngularVelocityScaleFactor` let you feed the gyro's own angular velocity measurement into pose estimation instead of relying solely on module odometry, which is usually more accurate during fast rotation: ```java config.withGyroVelocity(() -> DegreesPerSecond.of(gyro.getRate())) .withGyroAngularVelocityScaleFactor(1.0); ``` {% hint style="info" %} `SwerveInputStream` is the recommended way to turn raw joystick axes into a `ChassisSpeeds` supplier for `drive(...)`; it handles deadbanding, axis cubing, and alliance-relative flipping so you don't have to write that math by hand. See [Swerve Input Stream](/documentation/understanding/swerve-drive/swerve-input-stream.md) for the full picture, or the [tutorial](/documentation/tutorials/swerve-drive.md) for a worked example. {% endhint %} ```java SwerveInputStream input = SwerveInputStream.of(drive, controller::getLeftX, controller::getLeftY) .withControllerRotationAxis(controller::getRightX); setDefaultCommand(drive.drive(input)); ``` ## PathPlanner Integration and Feedforward Forces `setRobotRelativeChassisSpeeds` has an overload that accepts a per-module drive-wheel feedforward `Force[]` (FL, FR, BL, BR order, matching module order) alongside the `ChassisSpeeds`: ```java drive.setRobotRelativeChassisSpeeds(speeds, feedforwardForces); ``` This exists specifically to plug into PathPlanner's `AutoBuilder.configure(...)`, whose `driveRobotRelative` consumer hands back a `DriveFeedforwards` alongside the requested `ChassisSpeeds` — its `linearForces()` is exactly the `Force[]` this overload expects: ```java AutoBuilder.configure( drive::getPose, drive::resetOdometry, drive::getRobotRelativeSpeed, (speeds, feedforwards) -> drive.setRobotRelativeChassisSpeeds(speeds, feedforwards.linearForces()), new PPHolonomicDriveController(new PIDConstants(5.0, 0.0, 0.0), new PIDConstants(5.0, 0.0, 0.0)), RobotConfig.fromGUISettings(), () -> DriverStation.getAlliance().filter(a -> a == DriverStation.Alliance.Red).isPresent(), this); ``` Each module's drive `SmartMotorController` converts its share of the `Force[]` into the correct feedforward for whatever control mode it's using — voltage or torque-current — via `SmartMotorControllerConfig.convertToVoltage(...)`/`convertToCurrent(...)`, which need `withGearing(...)` and `withMechanismCircumference(...)`/`withWheelRadius(...)` configured on that motor to do the conversion. Passing an empty `Force[]` (or just calling the original single-argument overload) skips the feedforward entirely, so existing code that only calls `setRobotRelativeChassisSpeeds(speeds)` keeps working unchanged. {% @github-files/github-code-block url="" %} {% hint style="info" %} `SmartMotorController.setVelocity(velocity, force)` is the underlying per-motor API this builds on, and it isn't specific to swerve — any velocity-controlled `SmartMotorController` with gearing and a mechanism circumference configured can take a feedforward `Force` the same way. A `null`/unset force falls back to plain velocity control, which is what `getSetpointFeedforwardForce()` and the `SetpointForce` telemetry field then read back as empty/`0`. {% endhint %} ## Auto-Align: `driveToPoseSetpoint` and Live PID Tuning `SwerveDrive` includes a built-in field-relative auto-align: `driveToPoseSetpoint(Pose2d targetPose)` uses the translation and rotation `PIDController`s from `SwerveDriveConfig` to compute the `ChassisSpeeds` needed to drive toward a target pose, and `driveToPose(Pose2d)` wraps that into a ready-to-schedule `Command`. ```java Command alignToScore = drive.driveToPose(new Pose2d(2, 4, Rotation2d.kZero)); alignToScore.schedule(); ``` What makes this different from wiring up the PID controllers yourself is the telemetry integration: `SwerveDriveTelemetryConfig` publishes a live-tunable target pose (as separate `autoalign/setpoint/x`, `autoalign/setpoint/y`, `autoalign/setpoint/rot` entries, gated by an `autoalign/enabled` toggle) and the translation/rotation PID gains to NetworkTables, and `SwerveDrive` publishes a matching tuning command to SmartDashboard (`Mechanisms//tuning/driveToPose`). Running that command from the dashboard reads `autoalign/enabled` every loop; while it's `true`, it also reads the tunable pose fields and PID gains and drives the real (or simulated) robot toward them, so you can tune auto-align PID gains — or drive to an arbitrary pose — live without redeploying code. Changing a gain only resets that controller's integrator if the gain actually changed, so tuning doesn't wipe accumulated state every loop. ### How to Use Live Tuning 1. Make sure the fields you need are enabled. 1. `TranslationP/I/D`, `RotationP/I/D`, `autoalign/setpoint`, and `autoalign/enabled` are all already live-tunable at `HIGH` verbosity, so no extra opt-in is needed. 2. Deploy the robot code, then open NetworkTables in AdvantageScope, Shuffleboard, Elastic, or a similar dashboard tool and browse to `Tuning//` (the name you passed to `withTelemetry`). You should see `autoalign/translation/p`, `i`, `d`, `autoalign/rotation/p`, `i`, `d`, `autoalign/setpoint`, and `autoalign/enabled`. The gain entries start pre-seeded with whatever you passed to `withTranslationController(...)`/`withRotationController(...)`, not `0`, the same way `SmartMotorControllerTelemetry` seeds its `kP`/`kI`/`kD` tuning entries from the motor's configured PID. 3. On Elastic, find the command at `SmartDashboard/echanisms//tuning` and schedule it, either by binding it to a button or running it directly from your dashboard's command widget. Starting it resets both PID controllers; it then checks `autoalign/enabled` every loop and, while `true`, calls `driveToPoseSetpoint(...)` using whatever `autoalign/setpoint/x`/`autoalign/setpoint/y`/`autoalign/setpoint/rot` and gains currently sit in `Tuning//`.

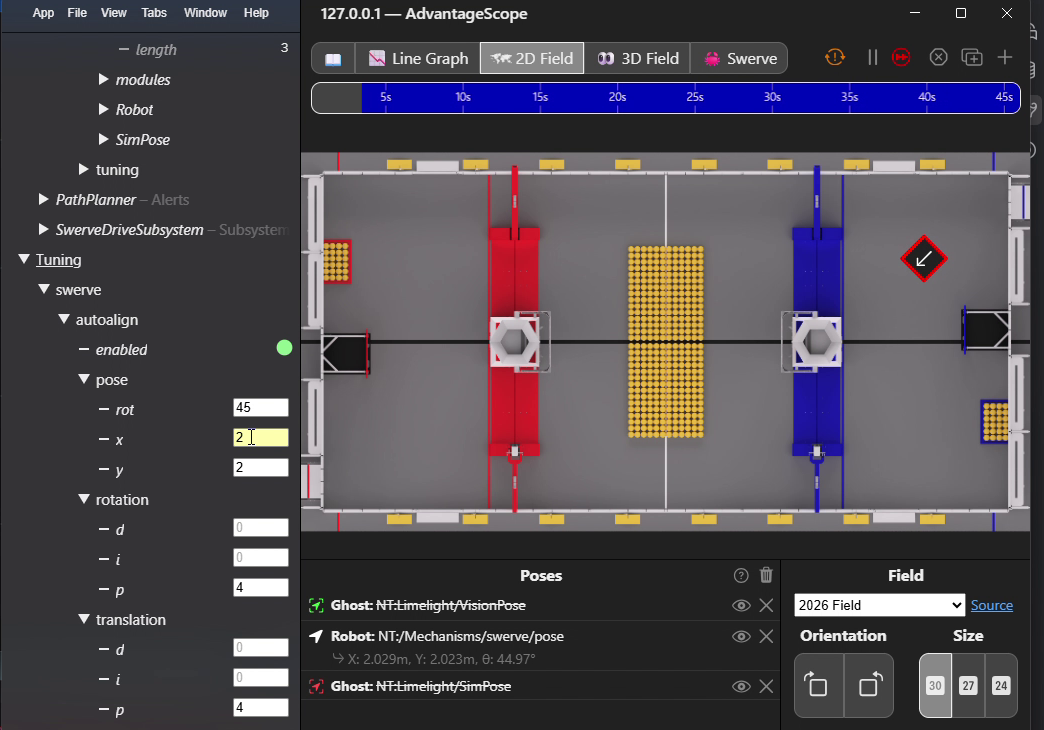

AdvantageScope 2D field with the driveToPose command scheduled and the Tuning/swerve/autoalign tree expanded, showing enabled, pose/x,y,rot, and the translation/rotation gain entries.

4. With the tuning command running, edit `autoalign/translation/p` (and the other gain entries) live from your dashboard. Set `autoalign/setpoint/x`/`autoalign/setpoint/y` (meters) and `autoalign/setpoint/rot` (degrees) to the field-relative pose you want, then flip `autoalign/enabled` to `true`. The robot immediately drives toward the target using the current gains, no redeploy needed.

Live tuning in simulation: the robot drives from its current pose to a target of autoalign/setpoint/x=12, autoalign/setpoint/y=4, autoalign/setpoint/rot=90 while autoalign/enabled is true.

5. Once a gain feels right, copy its value back into the matching `SwerveDriveConfig.withTranslationController(...)` / `withRotationController(...)` call in code. Values edited live in NetworkTables are not persisted and reset the next time the robot code restarts. 6. Flip `autoalign/enabled` back to `false` (or unschedule the tuning command) before handing control back to the driver.

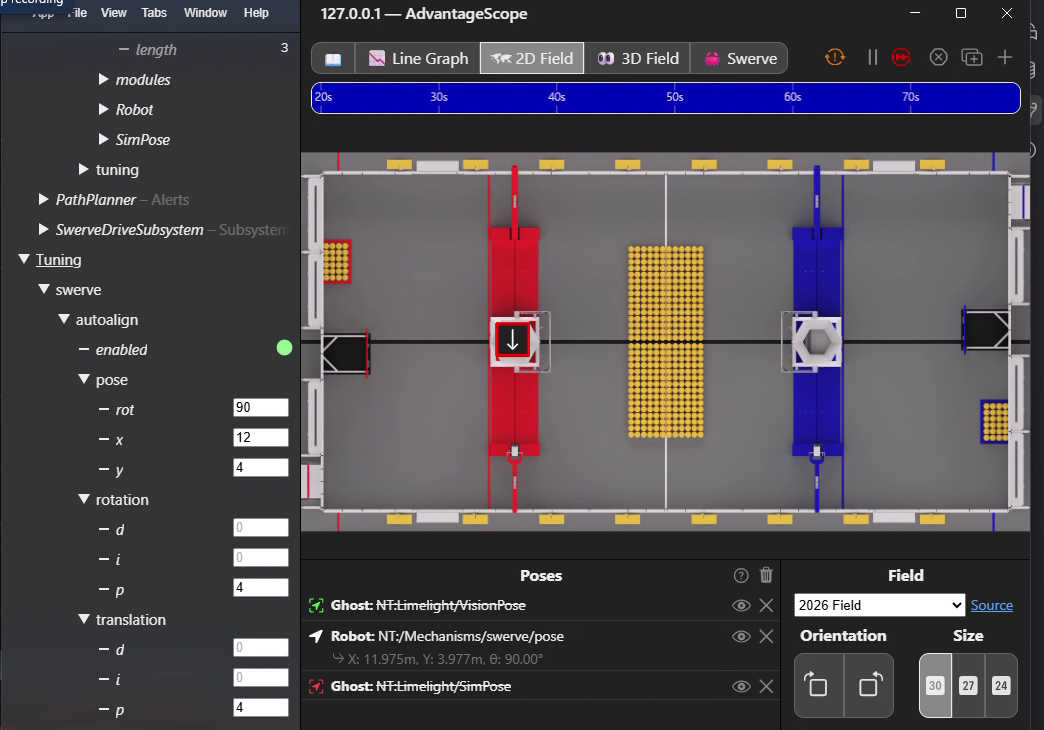

Robot settled at the target pose (X: 11.975m, Y: 3.977m, θ: 90.00° against a target of 12, 4, 90).

## Module Drive/Azimuth Live PID Tuning `SwerveDriveTelemetryConfig` also exposes a shared set of tunable feedback (PID) gains, feedforward (`kS`/`kV`/`kA`) gains, and a setpoint for every module's drive motor (`modules/drive/feedback/p,i,d`, `modules/drive/feedforward/s,v,a`, `modules/drive/velocity`, `modules/drive/inplace`) and azimuth motor (`modules/azimuth/feedback/p,i,d`, `modules/azimuth/feedforward/s,v,a`, `modules/azimuth/angle`), gated by `modules/drive/enabled` and `modules/azimuth/enabled` toggles respectively. These are **shared across every module** on the drive, not per-module fields — flipping `modules/drive/enabled` to `true` commands the same velocity setpoint (and applies the same gains) to every module's drive motor simultaneously, which is the normal case for tuning a symmetric swerve chassis without repeating the same numbers four times. `SwerveDrive` reads these fields from the same `Mechanisms//tuning/driveToPose` command used for auto-align tuning (see above); scheduling that command is what makes both auto-align and module tuning live. {% hint style="success" %} **You don't need a gyro wired up yet.** In simulation, `SwerveDrive` tracks its own simulated gyro angle internally and never touches `SwerveDriveConfig.withGyro(...)`, so you can bring up and tune drive/azimuth PID with this feature before you've written any gyro-reading code at all. On a real robot, though, `SwerveDrive`'s constructor calls into the gyro supplier immediately and throws `IllegalStateException` if `withGyro(...)` was never called, so add it before you deploy to hardware. A sensible order: tune drive/azimuth PID in sim first, wire up the real gyro, then move on to auto-align and field-relative driving. {% endhint %} 1. `modules/drive/feedback/p,i,d`, `modules/drive/feedforward/s,v,a`, `modules/drive/velocity`, `modules/drive/enabled`, `modules/drive/inplace`, `modules/azimuth/feedback/p,i,d`, `modules/azimuth/feedforward/s,v,a`, `modules/azimuth/angle`, and `modules/azimuth/enabled` are all already live-tunable at `HIGH` verbosity. The gain entries are pre-seeded from the first module's configured drive/azimuth PID and `SimpleMotorFeedforward`, not `0`. 2. Schedule `Mechanisms//tuning/driveToPose` (the same command as auto-align tuning). 3. Edit `modules/drive/feedback/p`/`i`/`d` and `modules/drive/feedforward/s`/`v`/`a` live; each gain only propagates to every module's drive motor the moment it actually changes, so tuning doesn't spam `SmartMotorController.setKp(...)`/`setKs(...)` every loop. Set `modules/drive/velocity` (meters per second) to the speed you want to test, then flip `modules/drive/enabled` to `true`, every module immediately targets that velocity at an angle of `0°`, using the current gains. 4. To test drive tuning while spinning the chassis in place instead of driving straight, flip `modules/drive/inplace` to `true` while `modules/drive/enabled` is `true`. Each module's angle is recomputed to point tangent to its position around the robot center, so a positive `modules/drive/velocity` spins the whole robot counter-clockwise, matching WPILib's positive rotation direction. Flipping `modules/drive/inplace` back to `false` returns every module to `0°`.

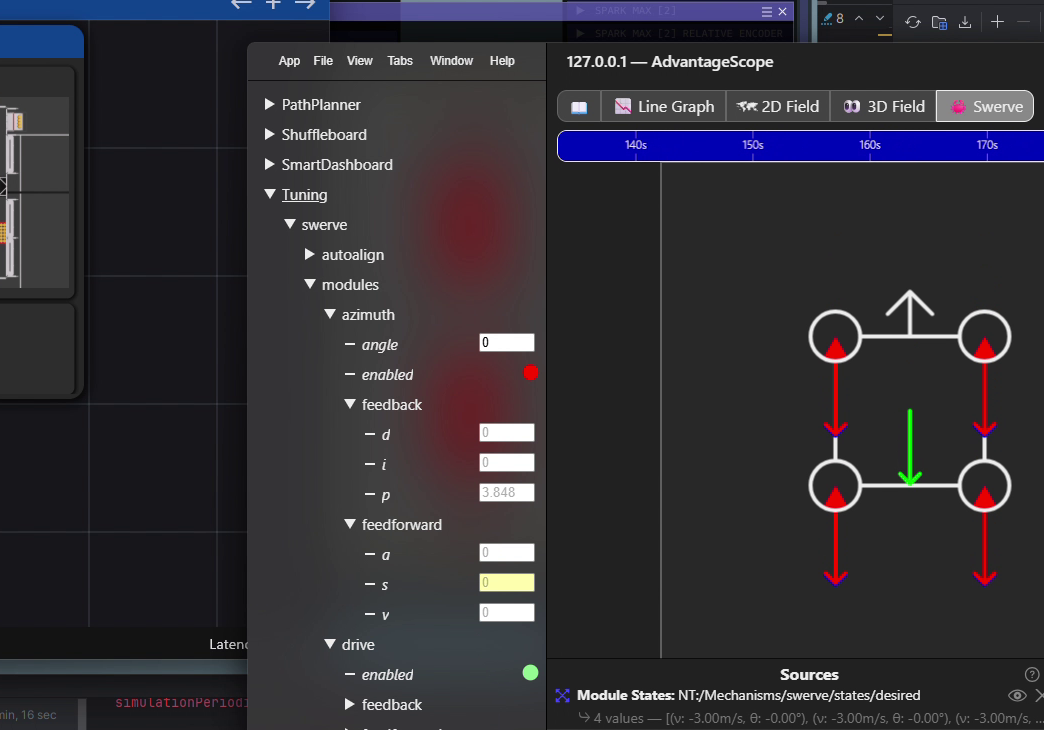

AdvantageScope with Tuning/swerve/modules/drive/enabled flipped on: the Swerve widget's Module States source shows every module driving at the commanded -3.00 m/s.

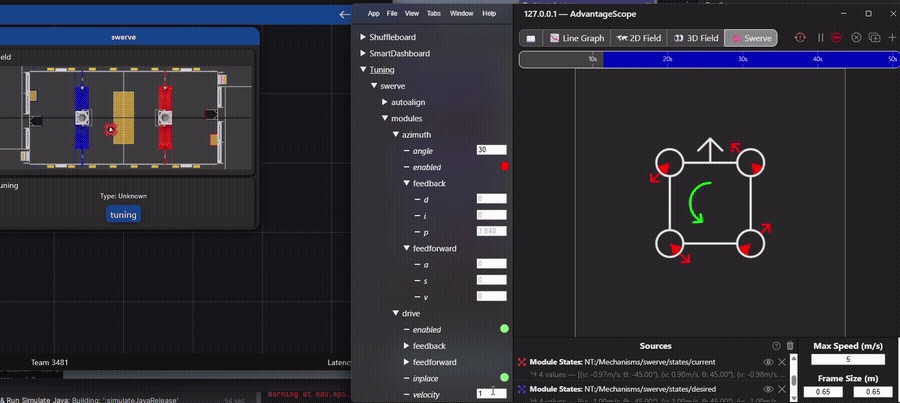

Raising Tuning/swerve/modules/drive/velocity with modules/drive/inplace already true: every module points tangent to the robot center and the whole chassis spins faster in place as the magnitude increases.

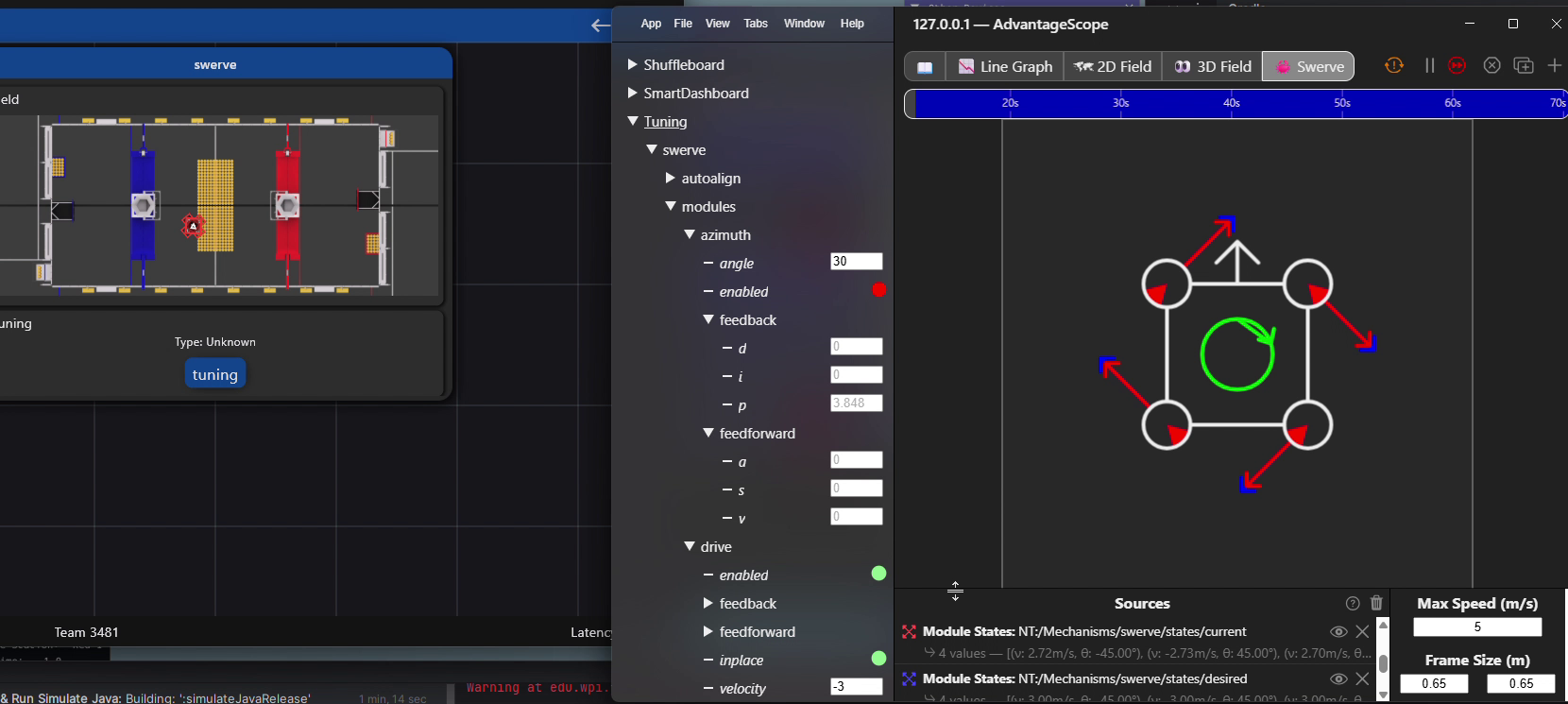

Tuning/swerve/modules/drive/enabled and modules/drive/inplace both true with velocity at -3: each module is pinwheeled 90° off its radial angle, and the Swerve widget's rotation arrow (and the field view on the left) confirm the robot is spinning cleanly about its center.

5. Do the same for `modules/azimuth/feedback/p`/`i`/`d`, `modules/azimuth/feedforward/s`/`v`/`a`, and `modules/azimuth/angle` (degrees) with `modules/azimuth/enabled`, to tune azimuth position control the same way. Drive velocity is always commanded to `0` while azimuth tuning is active, so the wheel only rotates in place, it never also drives.

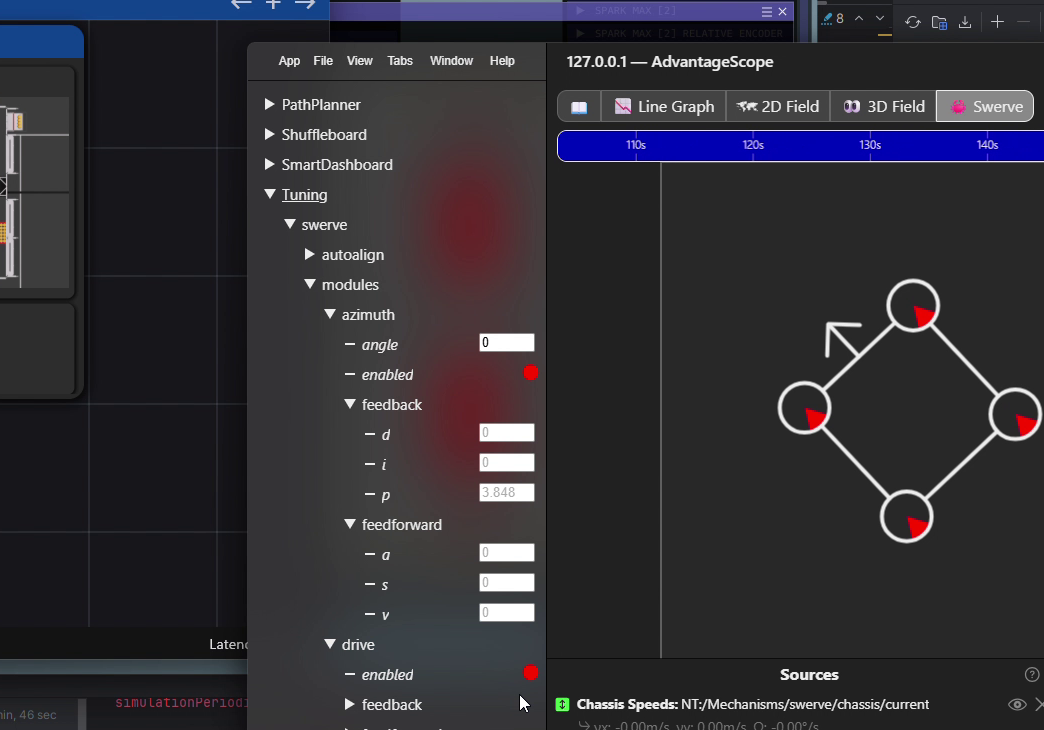

Editing Tuning/swerve/modules/azimuth/angle and watching every module rotate to the new heading live.

The full Tuning/swerve/modules tree in AdvantageScope: azimuth/angle, enabled, feedback/p,i,d, and feedforward/a,s,v, with drive's equivalents just below.

6. Copy the gains that feel right back into the drive/azimuth motors' `SmartMotorControllerConfig.withClosedLoopController(...)`/`withFeedforward(...)` calls in code, then flip both `enabled` toggles back to `false` before driving normally again. {% hint style="info" %} Both modes build a `SwerveModuleState[]` (one entry per module) and command it in one call via `SwerveDrive.setSwerveModuleStates(...)`, not the drive/azimuth `SmartMotorController`s directly, so the same optimization `SwerveModuleConfig.withOptimization(true)` applies during normal driving (shortest-path angle flips, minimum-velocity clamping) also applies while tuning, and the drive's desired-module-states telemetry stays consistent with what's actually commanded. {% endhint %} {% hint style="warning" %} **Only one tuning mode can be active at a time.** `autoalign/enabled`, `modules/drive/enabled`, and `modules/azimuth/enabled` are mutually exclusive, if you flip on a second one while another is already `true`, `SwerveDrive` immediately forces the others back to `false` in NetworkTables (priority order: auto-align, then drive tuning, then azimuth tuning), so the dashboard reflects which mode actually won. When `modules/drive/enabled` is `false` (and auto-align isn't driving the chassis instead), every module's drive motor is continuously commanded to `0` m/s so the wheels don't keep spinning at whatever velocity was last set while it was on. `modules/drive/inplace` only changes each module's target angle while `modules/drive/enabled` is `true`: `false` (the default) points every module at `0°`, `true` points them tangent to their position for a counter-clockwise spin in place. There's no equivalent auto-zero for azimuth, turning off `modules/azimuth/enabled` just stops commanding a new angle, it doesn't snap the wheels back to `0°`. {% endhint %} ## Telemetry Verbosity Like every other mechanism, `SwerveDriveConfig.withTelemetry(name, TelemetryVerbosity)` picks a preset bundle of fields to publish, from pose and gyro angle at `LOW` up to full desired/measured chassis speeds and module states at `HIGH`. Each level includes everything the level below it publishes. ```java config.withTelemetry("swerve", TelemetryVerbosity.HIGH); ``` | Field | NetworkTables key | `LOW` | `MID` | `HIGH` | | ------------------------------------------ | ----------------------------------- | :---: | :---: | :----: | | Pose | `pose` | ✓ | ✓ | ✓ | | Gyro angle | `gyro` | ✓ | ✓ | ✓ | | Current robot-relative ChassisSpeeds | `chassis/current` | | ✓ | ✓ | | Field-relative ChassisSpeeds | `chassis/field` | | ✓ | ✓ | | Current module states | `states/current` | | ✓ | ✓ | | Desired robot-relative ChassisSpeeds | `chassis/desired` | | | ✓ | | Desired module states | `states/desired` | | | ✓ | | Translation P/I/D (tunable) | `autoalign/translation/p,i,d` | | | ✓ | | Rotation P/I/D (tunable) | `autoalign/rotation/p,i,d` | | | ✓ | | Auto-align target X (tunable) | `autoalign/setpoint/x` | | | ✓ | | Auto-align target Y (tunable) | `autoalign/setpoint/y` | | | ✓ | | Auto-align target rotation (tunable) | `autoalign/setpoint/rot` | | | ✓ | | Auto-align enabled (tunable) | `autoalign/enabled` | | | ✓ | | Modules drive P/I/D (tunable, shared) | `modules/drive/feedback/p,i,d` | | | ✓ | | Modules drive kS/kV/kA (tunable, shared) | `modules/drive/feedforward/s,v,a` | | | ✓ | | Modules drive velocity (tunable, shared) | `modules/drive/velocity` | | | ✓ | | Modules drive tuning enabled (tunable) | `modules/drive/enabled` | | | ✓ | | Modules drive in place (tunable) | `modules/drive/inplace` | | | ✓ | | Modules azimuth P/I/D (tunable, shared) | `modules/azimuth/feedback/p,i,d` | | | ✓ | | Modules azimuth kS/kV/kA (tunable, shared) | `modules/azimuth/feedforward/s,v,a` | | | ✓ | | Modules azimuth angle (tunable, shared) | `modules/azimuth/angle` | | | ✓ | | Modules azimuth tuning enabled (tunable) | `modules/azimuth/enabled` | | | ✓ | {% hint style="info" %} `autoalign/setpoint/x`/`autoalign/setpoint/y`/`autoalign/setpoint/rot` and `autoalign/enabled`, and the `modules/drive/*`/`modules/azimuth/*` tuning fields, only take effect while the `Mechanisms//tuning/driveToPose` command is scheduled — that's the loop that actually reads them. Publishing values to them with the tuning command idle has no effect on the robot. {% endhint %} {% hint style="warning" %} The `modules/drive/*` and `modules/azimuth/*` fields are **shared across every module**, not per-module. There is no way to tune a single module's PID or setpoint independently through this mechanism; it applies the same gains and setpoint to all modules on the drive at once. {% endhint %} ### Using `SwerveDriveTelemetryConfig` Directly Pass a `SwerveDriveTelemetryConfig` instead of a verbosity level when you need finer control than a preset gives you, such as disabling the auto-align tuning fields, or routing telemetry to a DataLog instead of NetworkTables during competition: ```java SwerveDriveTelemetryConfig telemetryCfg = new SwerveDriveTelemetryConfig(TelemetryVerbosity.HIGH) // HIGH enables this by default; opt back out if you don't want live driveToPose tuning exposed. .withCustom(SwerveDriveTelemetry.BooleanTelemetryField.AutoAlignEnabled, false) .withoutNetworkTables() .withDataLogName("swerve"); SwerveDriveConfig config = new SwerveDriveConfig(this, fl, fr, bl, br) .withGyro(gyro.getYaw().asSupplier()) .withTranslationController(new PIDController(1.0, 0, 0)) .withRotationController(new PIDController(1.0, 0, 0)) .withTelemetry("swerve", telemetryCfg); ``` `SwerveDriveTelemetryConfig(TelemetryVerbosity)` is a shorthand constructor equivalent to `new SwerveDriveTelemetryConfig().withTelemetryVerbosity(verbosity)`, useful when you're about to layer more `with*()` calls on top anyway. See [Telemetry](/documentation/understanding/telemetry.md) for the shared telemetry architecture these configs build on. ## Code Reference {% @github-files/github-code-block url="" %}
